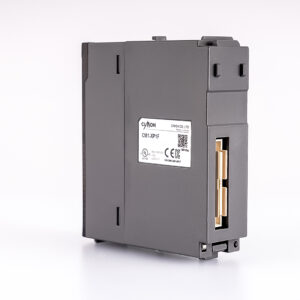

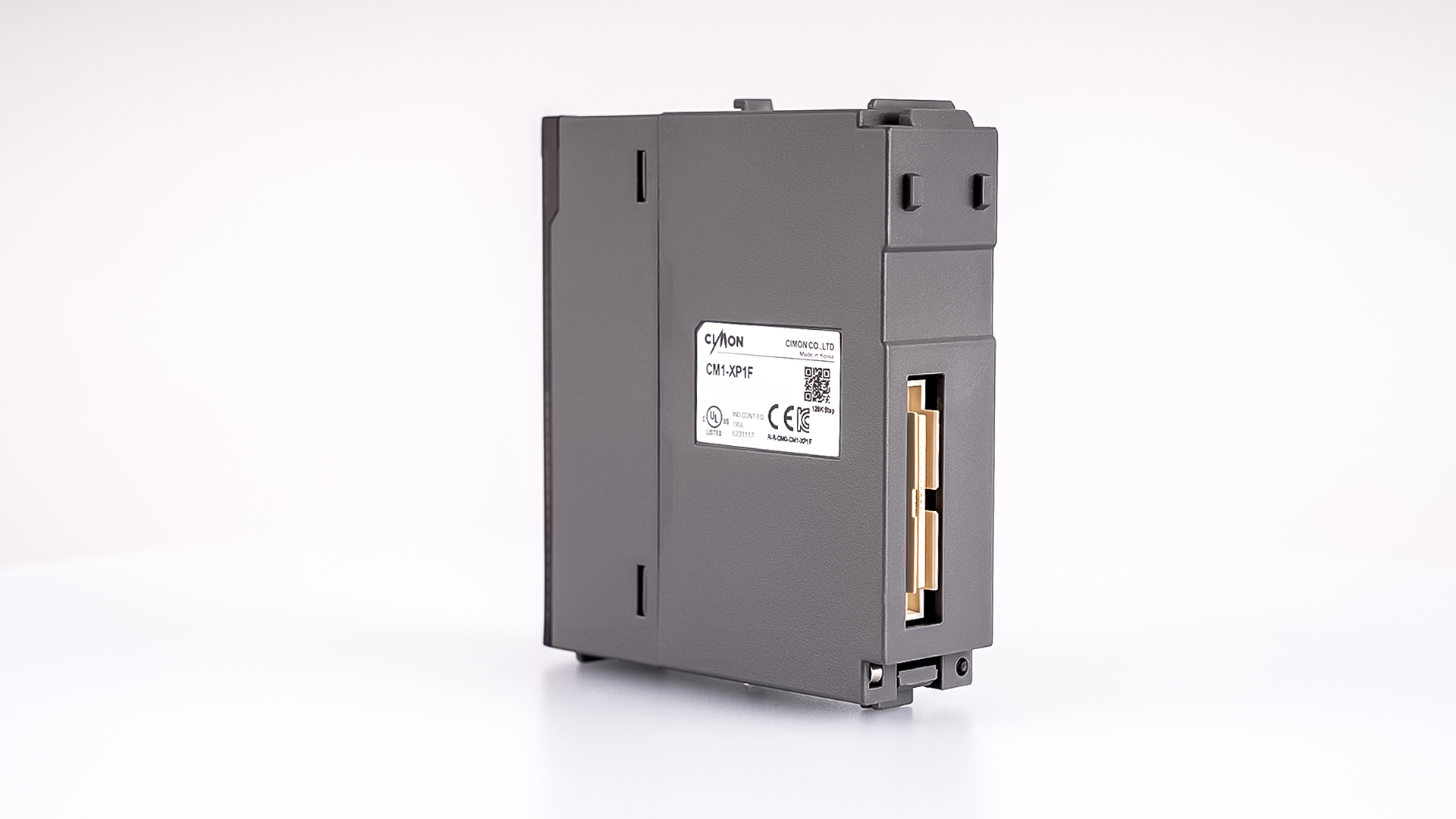

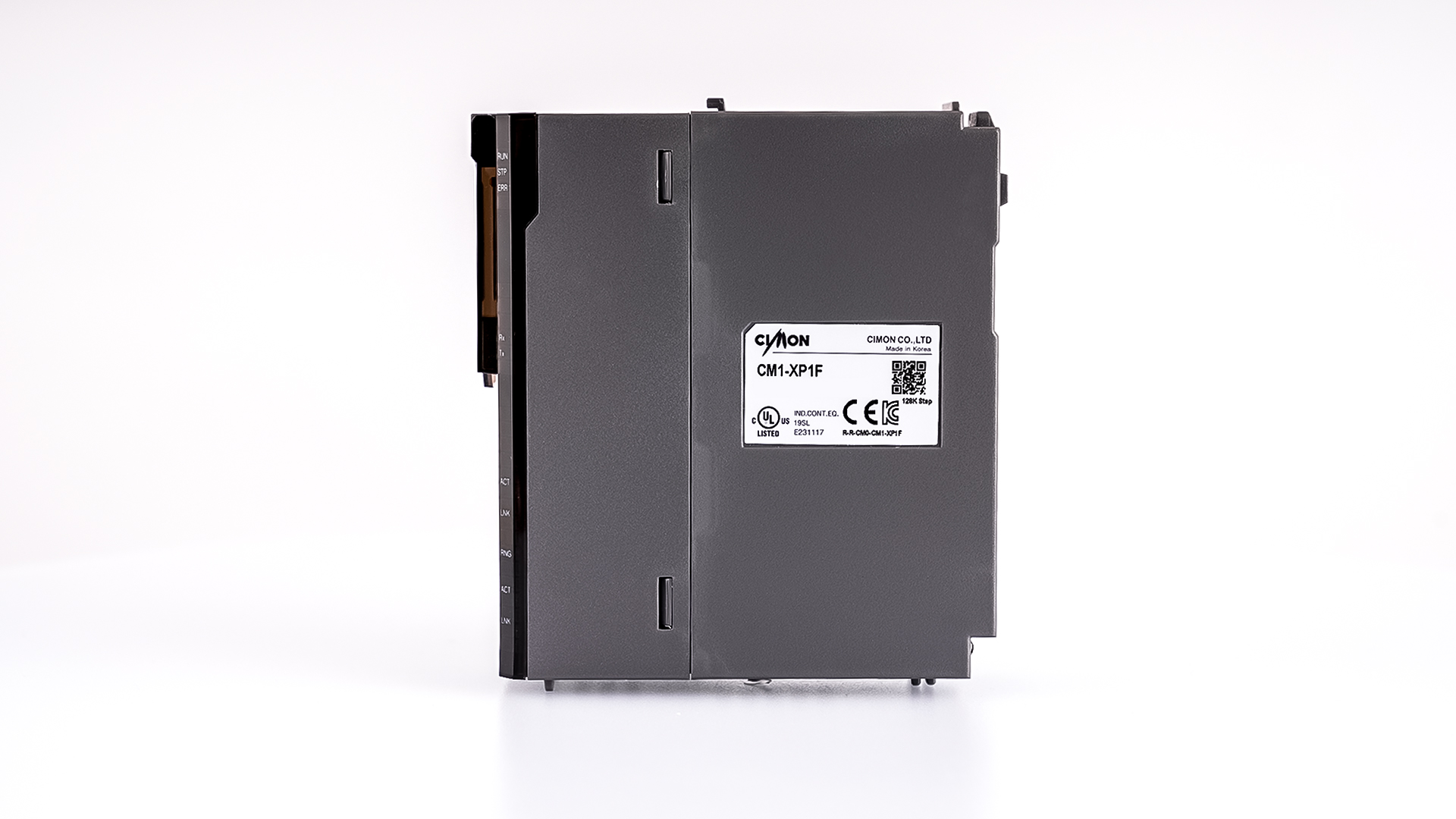

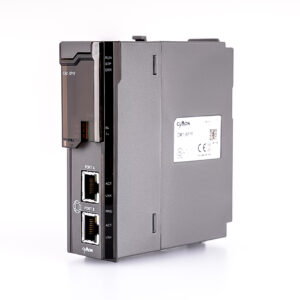

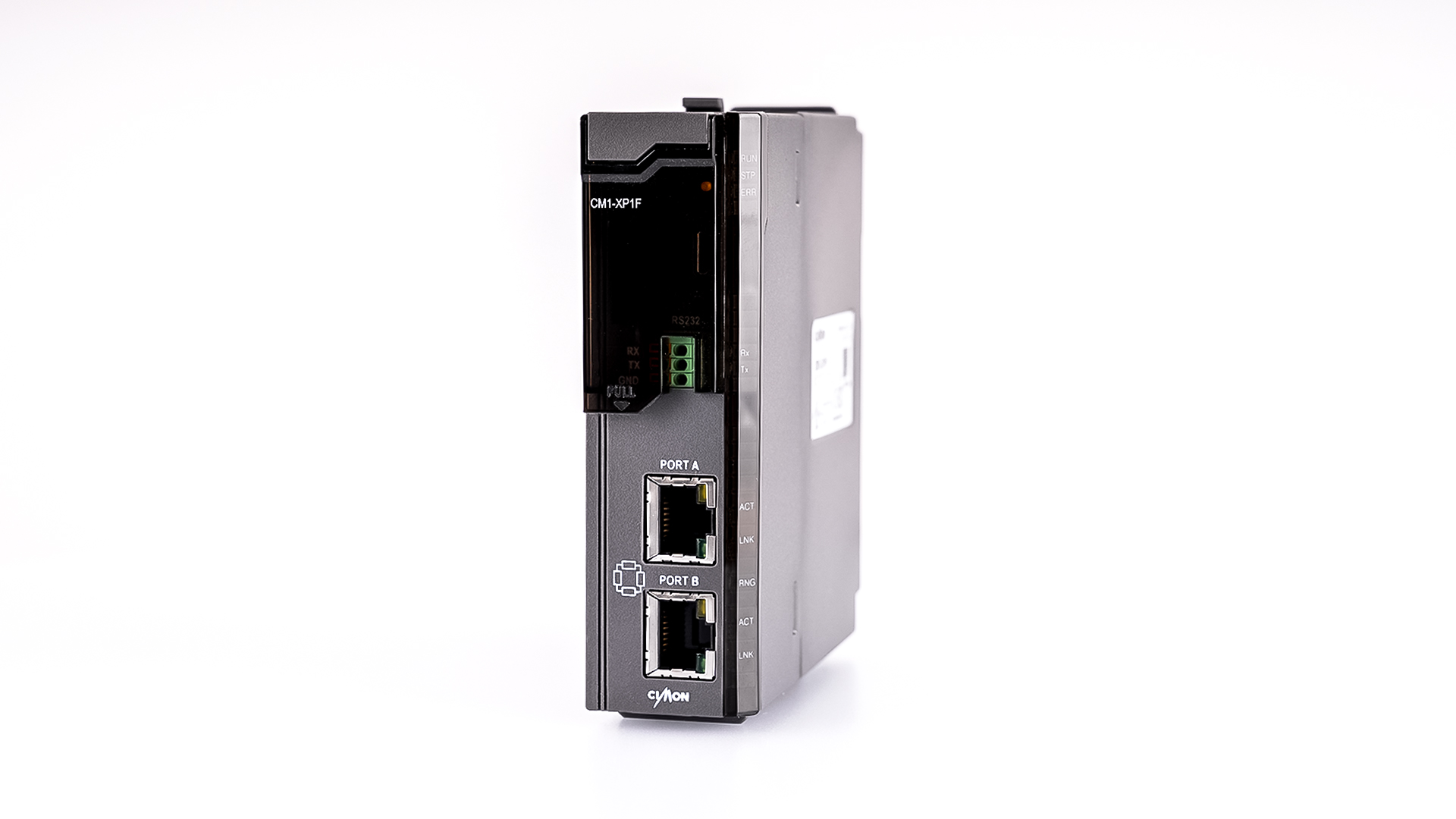

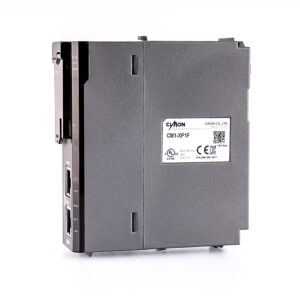

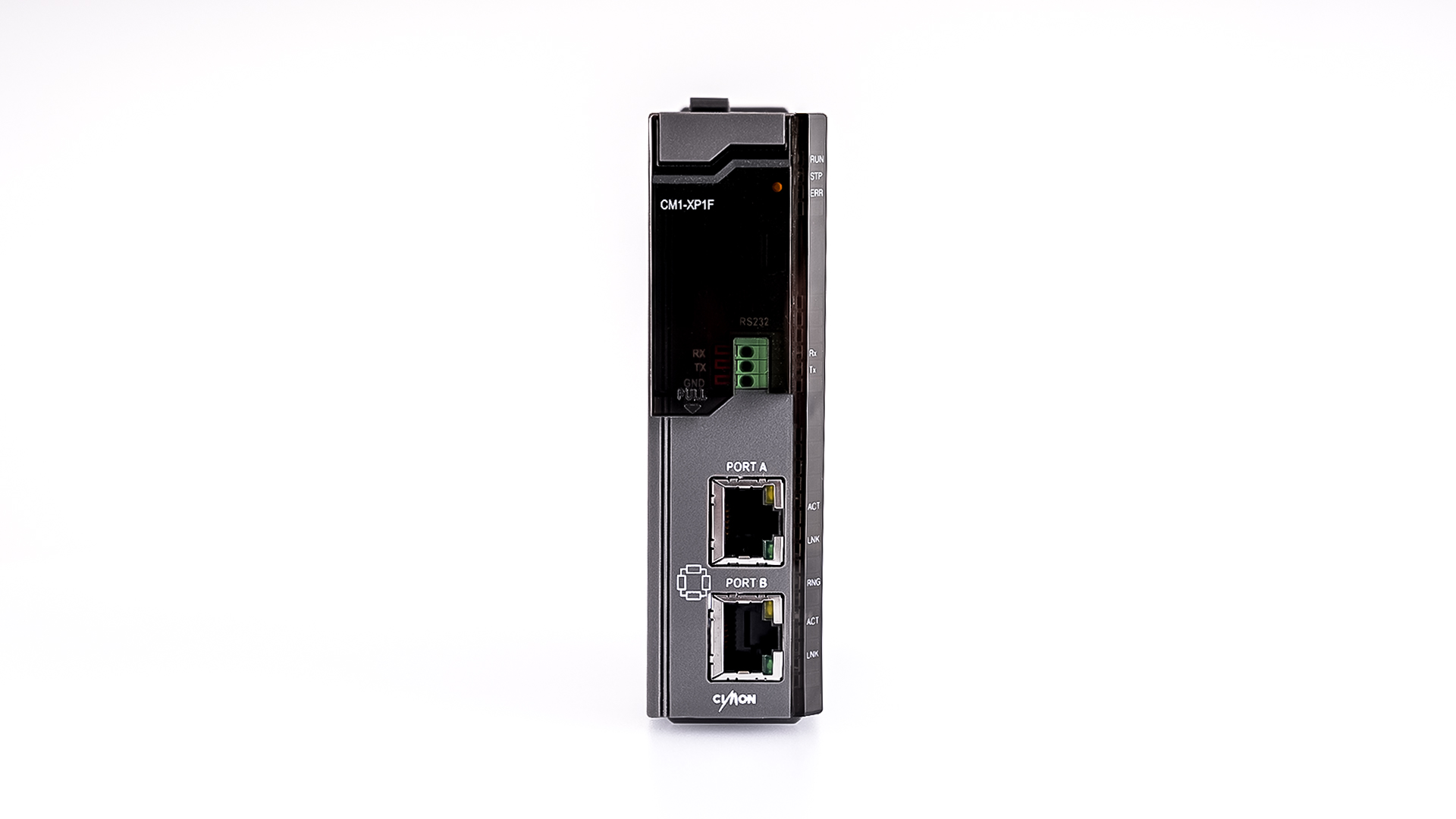

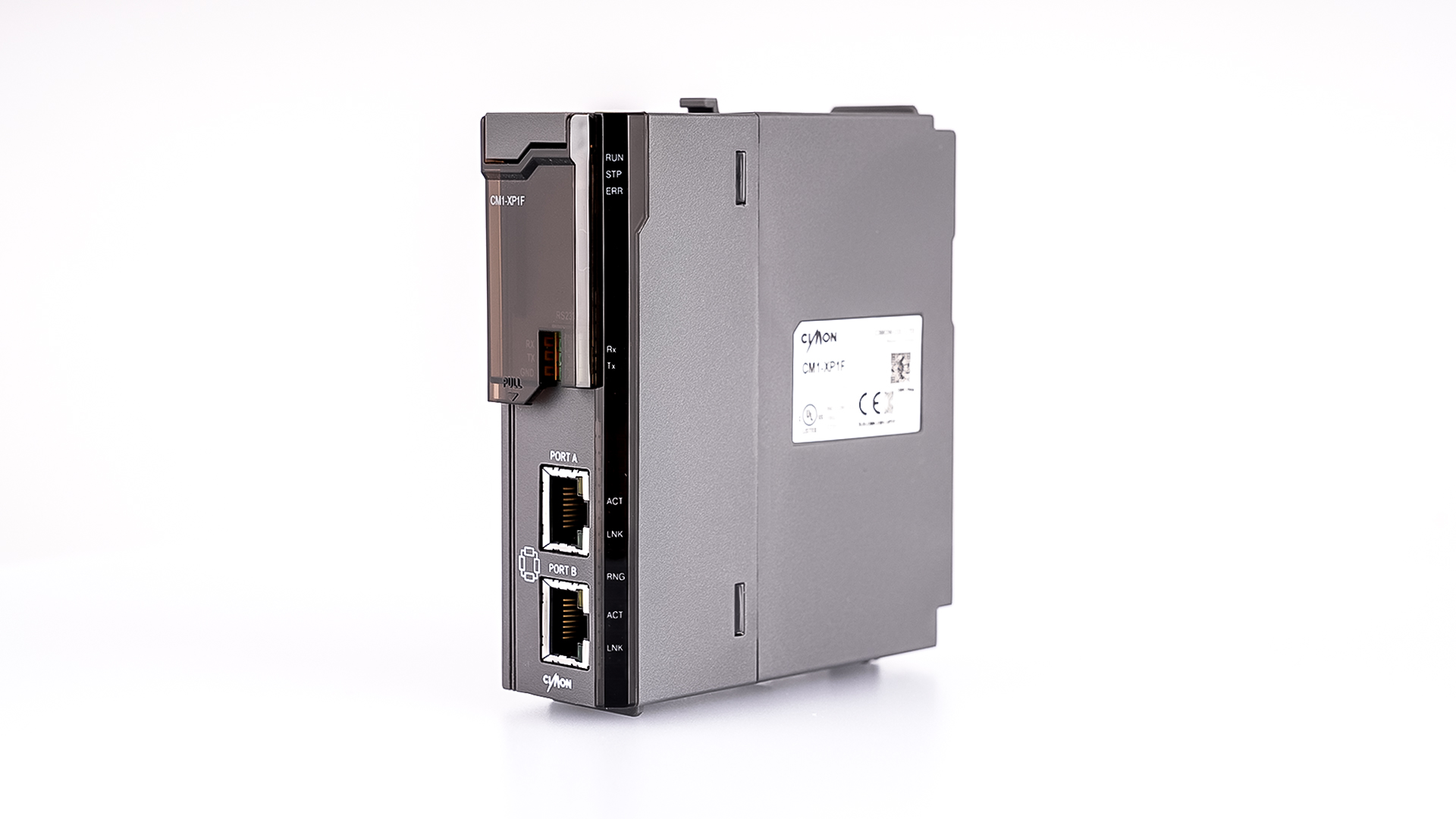

CM1-UP1F

Operating Temperature	-10°C – 60°C
Storage Temperature	-25°C – 80°C
Program Control	Repetitive operation, Stored Program (ROM mode), Periodic operation
Method for Controlling I/O	Indirect method, Direct method by instruction, Scan synchronous batch processing system (I/O refresh)
Program Language	LD (Ladder Diagram), IL (Instruction List), SFC (Sequential Function Chart), FB (Function Block), FB Extension, ST (Structured Text)
Number of Instruction	Basic Instruction: 60, Application instruction: 480
Data Processing	LD	0.075 μs/step
	MOV	0.049 μs/step
	Floating Point Arithmetic	+, -, x, / : 0.05 μs / Instruction
Program Memory	7 MByte (Including Upload, Parameter, System)
Number of Program Block	Scan, Special, Communication, SFC program: Max 128, up to 65,530 steps per block (PID) ST Program: Max. 128 blocks
Number of I/O	16,384 points
Number of valid I/O	16,384 points
Supported Programs	LD	Scan, Subroutine, Initialize (COLD), Initialize (HOT), Periodic interruption
	Special Configuration	Initializing special card, PID control, Thermistor setting, Loadcell setting, IO Input module filter setting
	Communication	User protocol(Serial), User protocol(Ethernet), MODBUS TCP/RTU Master, Ethernet High-speed link, CIMON-NET Master/Slave, DNP3, Public network IP setting, Fieldbus, OPC UA Server
	SFC	SFC Program
	ST	ST Program (ST-only local/global variables)
Periodic Interruption	Maximum 15, cycle setting (10 – 60,000 ms, Unit:10 ms), priority setting(0 – 14)
Base Expansion	Local base + Max. 31 expansions (Line-Expansion)
Max. Distance	Electricity (100 m)
Redundancy	–
RUN mode	LOCAL/Remote (RUN, STOP, PAUSE) Switch (RUN, STOP, Pause/RM)
Restarting	Cold, Hot Restart
Self Diagnosis	Monitoring delay of processing, problems of memory, IO, battery, power error
Data Preservation Against Power Failure	K device and conservation (Latch) in M, L, T, C, S, D device
WDT	Maximum 5000 ms (Unit: 10 ms)
Timer	On Delay, Off Delay, Addition, Monostable, Retriggerable Cycle: Either 10 or 100 ms TC (Current value)/TS (Setting value)
Counter	UP, DOWN, UP/DOWN, RING COUNTER, CC (Current value)/CS (Setting value) No limitation on the number of points Count range: -32,768 – +32,767
PID	32 Channels, Auto-Tuning
Communication Channels	USB	Serial: For Loader Protocol
	Serial	RS-232C (Maximum 115,200 bps): CICON Loader, CIMON-HMI, MODBUS RTU Slave
	Ethernet (2 ports)	Speed: 10/100/1000 Mbps Expansion or Ethernet communication (Port A: Ethernet communication, Port B: Expansion) CICON Loader, CIMON-HMI, MODBUS TCP Slave
Event Log	Max. 100 event logs (Power, Mode, Error)
Firmware Upgrade	Supported
Power	5 VDC, less than 250 mA
Weight (g)	130 g (±5 g)
Floating-point Arithmetic	Supports floating-point arithmetic instructions
Additional Features	I/O Reservation, PLC-LINK, RTC, Online Edit, Program download via SD card, Whole system backup/recovery, Device backup/recovery, System log backup
Scan Program Capacity	256k steps
Device Memory	X	16,384 pts
	Y	16,384 pts
	M	65,536 pts
	K	65,536 pts
	L	65,536 pts
	F	4,096 pts
	T	4,096 (select between 10 ms, 100 ms)
	C	4,096
	S	100 Cards * 100 Steps
	D	32,767 words
	Z	1,024 words
	Q	8,192 pts
	R	16 words
